Color
Natural
Orientation
Right-Hand
Product Name

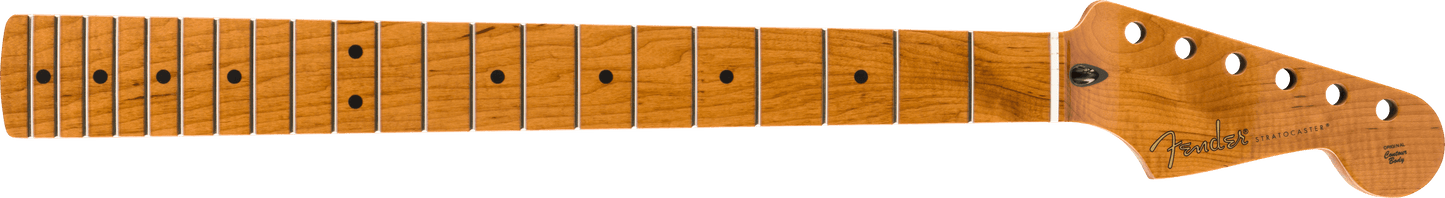

Roasted Maple Stratocaster Neck, 21 Narrow Tall Frets, 9.5", Maple, C Shape
Series
Modified
Roasted Maple Stratocaster Neck, 21 Narrow Tall Frets, 9.5", C Shape
Regular price
CHF 410.00
Regular price
CHF 410.00
CHF 410.00
Sale price
Unit price
per
inc. VAT*
Roasted Maple Stratocaster Neck, 21 Narrow Tall Frets, 9.5", C Shape
Roasted Maple Stratocaster Neck, 21 Narrow Tall Frets, 9.5", C Shape
Regular price
CHF 410.00
Regular price
CHF 410.00
CHF 410.00
Sale price
Unit price
per
inc. VAT*
Couldn't load pickup availability
Shipping & Returns
Free shipping on orders over CHF 85. Delivery Times: Standard 2-5 Days, Express 1-3 Days. Learn more
Return or exchange your purchase for any reason within 30 days of receipt. Learn more
Details
Summary
Overview
There's no denying the allure of a roasted maple neck. Resistant to humidity shifts and featuring a gorgeous, dark look, they have more sustain and add a unique note to the instrument's voice.

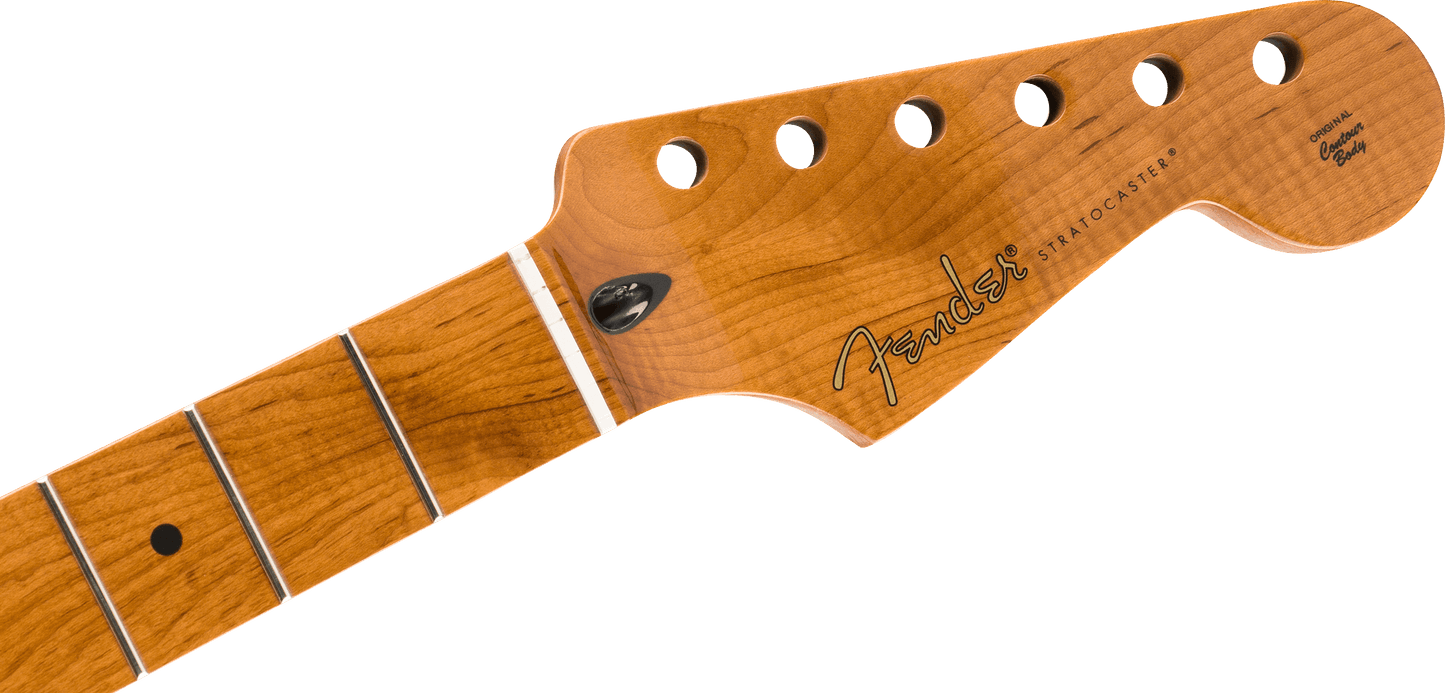

This genuine Fender Stratocaster neck is crafted at our Ensenada, Mexico manufacturing facility. Featuring a comfortable "Modern C"-shaped profile and 9.5"-radius maple fingerboard with 21 narrow-tall frets, this neck was designed for pure playability. The synthetic bone nut is pre-slotted with "pilot" grooves for accurate spacing when filing the final string slots. The perfect way to give your Strat® authentic Fender feel, this replacement neck even sports our famous "spaghetti" logo on the headstock.
This replacement neck is for a Fender or Squier® by Fender guitar.
Because Fender genuine replacement necks have not been mounted to guitar bodies, nut slots must be cut by qualified personnel. Other installation processes may be required, such as fret work, fitting the neck to the neck pocket, and other instrument setup procedures. Your local FMIC Authorized Service Center can install genuine replacement necks; find Authorized Service Center locations near you in the "Support" section of fender.com.
Overview
Features
- Roasted maple neck
- "Modern C"-shaped profile; 9.5"-radius maple fingerboard
- 21 narrow-tall frets; synthetic bone nut
- Gloss urethane finish on fingerboard and headstock face; satin finish on back of neck
- Modern-style truss rod adjustment
General
Hardware
Tuner Mounting Config
Dual Guide Pin
Measurements
Fret Size
Narrow Tall
Fret Wire Dimensions
0.094" (H) x 0.054" (W)
Headstock Thickness
.540" (13.71 mm)
Peg Hole Diameter
.397" (10.08 mm)
Scale Length
25.5" (648 mm)
Miscellaneous
Style
Modern
Neck
Fingerboard Material
Maple
Fingerboard Radius
9.5" (241 mm)
Neck Finish
Satin Urethane Finish on Back of Neck with Gloss Urethane Headstock Face
Neck Material
Roasted Maple
Neck Mounting
4-Bolt
Neck Shape
Modern "C"
Neck Thickness
1st Fret - .820” (20.82 mm), 12th Fret - .870” (22.09 mm)
Number of Frets
21
Nut Material
Synthetic Bone
Nut Width
1.650" (42 mm)
Position Inlays
Black Dot
String Nut
Synthetic Bone
Truss Rod
Single Action, Head Adjust
Truss Rod Nut
3/16" Hex Adjustment
General
Color
Natural
Orientation
Right-Hand
Product Name

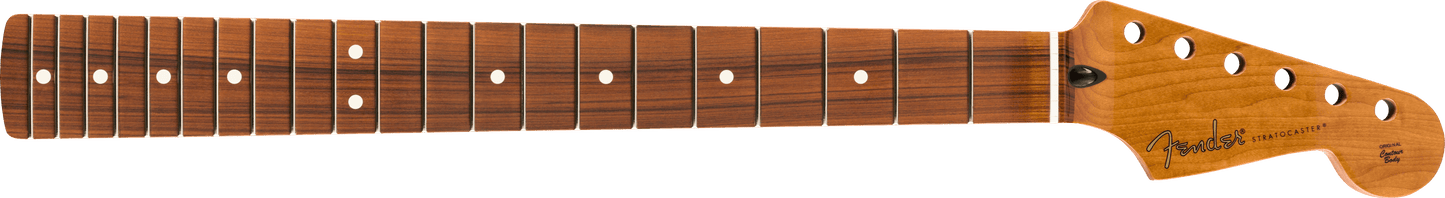

Roasted Maple Stratocaster Neck, 21 Narrow Tall Frets, 9.5", Pau Ferro, C Shape
Series
Modified
Hardware
Tuner Mounting Config
Dual Guide Pin
Measurements
Fret Size
Narrow Tall
Fret Wire Dimensions
0.094" (H) x 0.054" (W)
Headstock Thickness
.540" (13.71 mm)
Peg Hole Diameter
.397" (10.08 mm)
Scale Length
25.5" (648 mm)
Miscellaneous
Style
Modern
Neck
Fingerboard Material
Pau Ferro
Fingerboard Radius
9.5" (241 mm)
Neck Finish
Satin Urethane Finish on Back of Neck with Gloss Urethane Headstock Face
Neck Material
Roasted Maple
Neck Mounting
4-Bolt
Neck Shape
Modern "C"
Neck Thickness
1st Fret - .820” (20.82 mm), 12th Fret - .870” (22.09 mm)
Number of Frets
21
Nut Material
Synthetic Bone
Nut Width
1.650" (42 mm)
Position Inlays
White Dot
Side Dots
White
String Nut
Synthetic Bone
Truss Rod
Single Action, Head Adjust
Truss Rod Nut
3/16" Hex Adjustment
